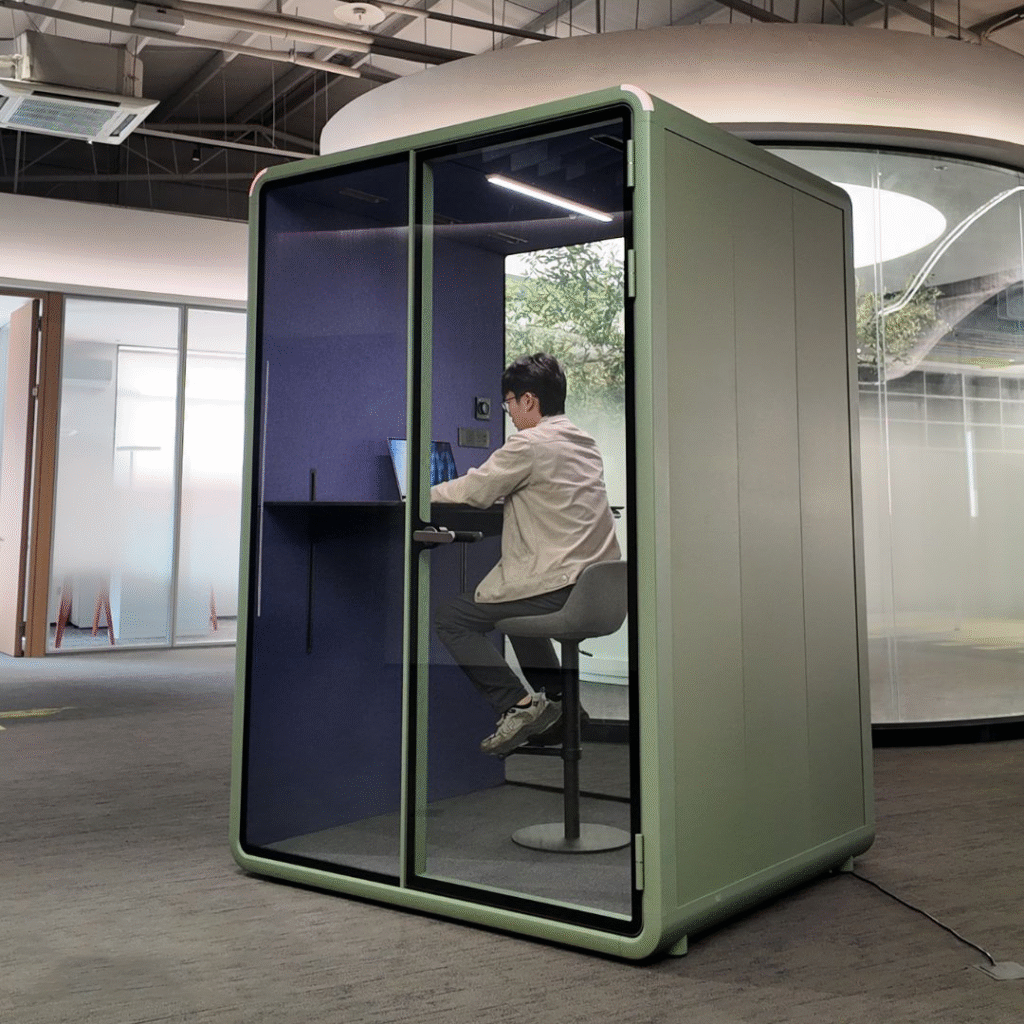

The principle of sound insulation technology in the work compartment (assuming a specific closed or semi-closed structure is used for sound insulation) mainly relies on energy conversion, damping dissipation, and structural optimization design in the field of acoustics. Through the synergistic effect of multiple layers of materials, this technology can effectively reduce the propagation of sound waves. Specifically, its core mechanisms can be divided into the following categories:
1. Absorption and conversion of sound wave energy
Sound absorption in porous materials: The interior of the pod can be lined with fibrous, granular, or porous materials (such as sound-absorbing cotton, glass fiber, etc.). When sound waves enter the micro-pores of these materials, air molecules friction against the pore walls, generating viscous resistance that converts sound energy into thermal energy, thereby reducing the intensity of the sound waves.
Damping layer energy dissipation: Elastic damping materials (such as rubber or high-polymer compounds) are added between structural layers. When sound waves cause structural vibrations, the damping layer converts mechanical energy into thermal energy through intermolecular friction, further weakening the vibration energy.
2. Sound wave reflection and blocking
High-density material sound insulation: The outer layer or structural layer of the cabin can be made of high-density materials (such as steel plates, concrete, etc.), utilizing the material’s density to directly reflect sound waves and reduce sound energy penetration. According to the law of mass, the greater the mass per unit area of the material, the more significant the sound insulation effect.
Multi-layer composite structure: By combining multiple layers of materials with different densities and thicknesses (such as a “mass layer-damping layer-air layer” structure), broadband sound insulation is achieved through the reflection, absorption, and phase interference effects of each layer on sound waves. For example, the air layer can form an acoustic resonance cavity, further dissipating acoustic energy.
3. Structural Optimization and vibration control
Vibration Damping Design: Elastic connections (such as vibration-damping pads or springs) can be used between the cabin structure and the supporting structure to reduce the transmission of solid-borne sound. For example, by lowering the structural resonance frequency and avoiding frequency coupling with external noise sources, the transmission of vibrations can be minimized.
Sealing Design: Sealing strips, elastic rubber, and other materials can be used at cabin seams and openings to prevent sound waves from leaking through gaps. Sealing performance is particularly critical for isolating high-frequency noise.
4. Acoustic resonance and interference effects
Helmholtz resonator: Within the pod, there may be cavities or channels of specific dimensions. These structures utilize the Helmholtz resonance principle and are specifically designed to absorb sound waves of specific frequencies. For example, by adjusting the cavity volume and neck dimensions, low-frequency noise can be selectively attenuated.
Multi-layer interference: Sound waves reflecting between multiple layers of material may create phase differences, leading to interference cancellation and further reducing the transmitted sound energy.
5. Sound bridge blocking
Independent structural support: The support structure of the cabin can be isolated from the external building structure to prevent sound waves from propagating through solid connections. For example, suspended floors or independent support structures can be used to cut off the propagation path of “sound bridges.”
Summary of Technical Principles
The soundproofing technology in the work compartment achieves sound wave energy attenuation and sound transmission path blocking through the synergistic effects of multiple mechanisms, including sound absorption, sound insulation, vibration reduction, and sealing. Its core principles are:
Material selection: porous materials for sound absorption, high-density materials for sound insulation, and damping materials for energy dissipation.
Structural design: multi-layer composite structures, elastic connections, and sealing treatments.
Acoustic optimization: resonance chamber design, interference elimination, and sound bridge isolation.
These principles work together to significantly reduce noise transmission between the interior and exterior of the cabin, making it suitable for applications requiring a quiet environment (such as industrial equipment soundproofing, laboratories, recording studios, etc.)
